Behringer Ultra Drive Pro DEQ 2496 Help

[blackcorvette]

hello,

i have 3 subs and tried to bring them in phase. And now iam done so far and will the rest create with the PEQ ´s. I Use the Auto EQ function from REW , but the results are not the same as REW show me . BW Oct 0,750 by REW is 1/7 on the behringer Display right ?



[John Mulcahy]

1/7 would display as 0.143. 0.75 is 3/4.



[blackcorvette]

so when in REW 0,750 is - what i must control on the behringer ?



[John Mulcahy]

3/4 octave bandwidth



[blackcorvette]

ah ok can you maybe help me ? i have 3 subs and where i must start ? Whats the best way to bring them together ? I use 2 Behringer DEQ 2496 ( one DEQ 2496 for Right Corner and mittle Corner ) and the other DEQ for the back Subwoofer (3 x XTZ 12.17 )

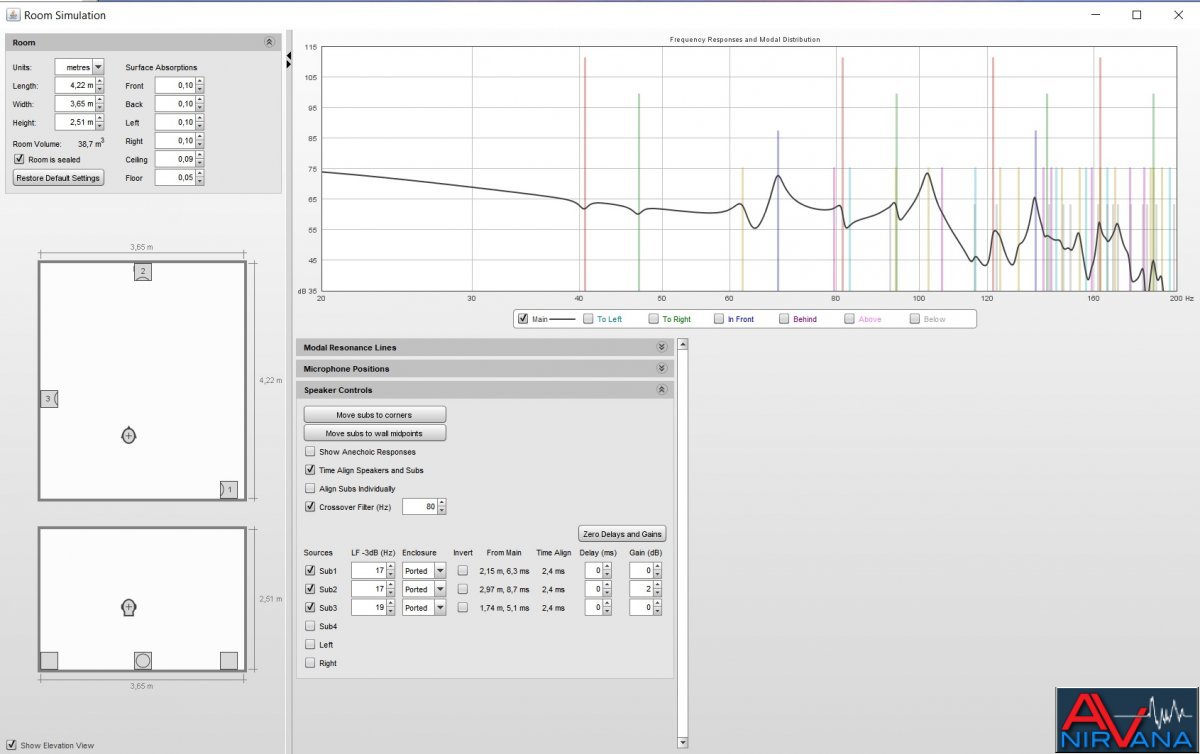

Here is a picture from my room

Test

• blackcorvette
• Aug 17, 2018

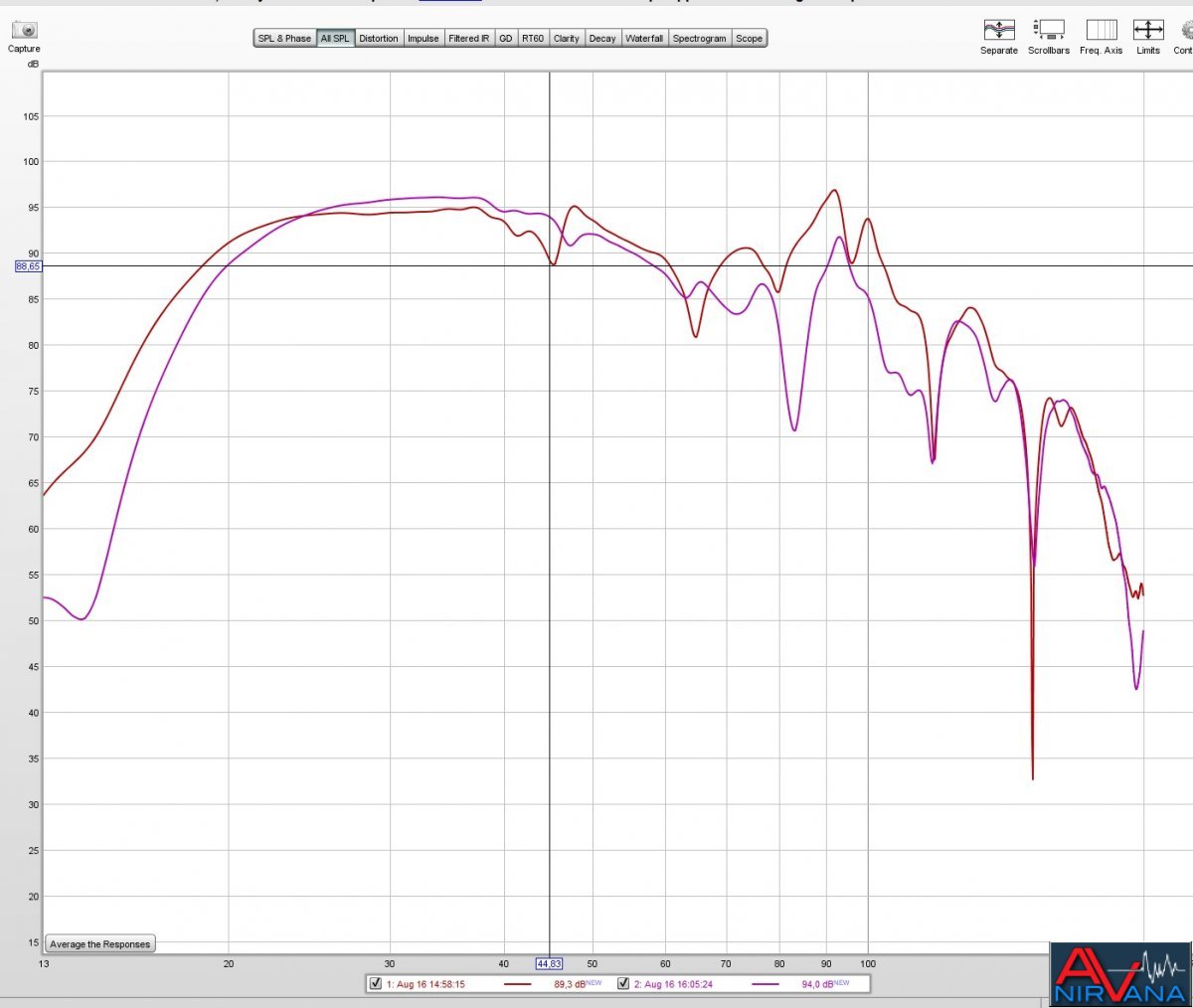

and this is the best result that i get so far.

Unbenannt

• blackcorvette
• Aug 17, 2018

is the setup right with the Behringers `? Or i shoud setup DEQ one with Front and Back and the other (middle Sub ) with the other ?



[John Mulcahy]

It doesn't really matter which sub goes through which equaliser. This thread has an interesting approach for multiple subs.



[blackcorvette]

sorry but the thread link follows me only to avs forum , but to no only thread

and other question , what i shoud first do ? before i edit so : first delay with volume edit then the peq for the modes for the sum of all subs. Is the line right ? or i shoud do before all room modes eliminate for each sub



[John Mulcahy]

Try this link: Multi-Sub optimizer

If you don't use the multi-sub optimiser approach then best applying EQ for all subs together, i.e. treat them as one sub with the same filters for each. If you have a single subwoofer signal then EQ that one signal before splitting it to the subs.



[blackcorvette]

i have use multi sub optimizer but the endresult was not the same like how in the program. Can you may help me , how i start with 3 Subs ? I have bought me now the mini DSP HD 2x4 , the must came in few days but until there woud i place the back sub maybe in the corner .

The sub 3 (in the picture upstairs ) what is the best position for the 3. sub ? Middle of the wall like right now or in the corner like sub 1 ?



[John Mulcahy]

Best asking in the MSO thread for any support on that. If you will be applying EQ to tackle peaks corner placement for subs can achieve best LF extension, but usually it is necessary to try the various positions available and see what gives a response with the fewest dips.



[blackcorvette]

my MiniDSP 2x4 HD arrived yesterday. Any tipps for me ?
