Hi everyone,
I need a bit of help, i'm following along with this guide
which teaches me how to measure the small thiele measurement.

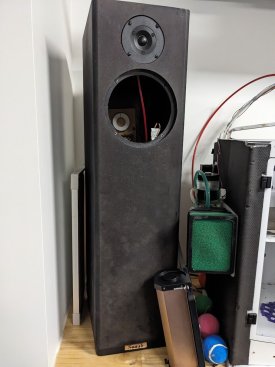

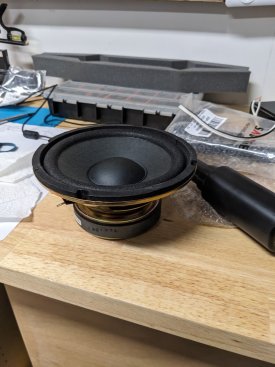

I need this measurement for some mystery speakers that i want to make a smaller non ported enclosure for.
I have done this before with the none amplified version of the rig and the results were inconsistent so i bought a Fosi audio tpa3116 amp and built the amplified testing circuit in the video.
Problem is, when i plug the two 3.5mm jacks into the sound card i get a 'click' out of the speaker about once a second.
I get this if i use my desktop onboard sound card, my laptop onboard sound card, a usb soundcard in either my laptop or my desktop. It happens on windows and linux.
The clicking gets louder if i turn the amp up.
I'm pretty sure i've made a mistake with my circuit but i can't see where. Here are some images:

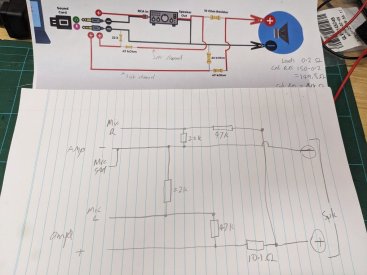

This is the circuit i've built from the video (pause at 10:30 to see the original)
the pencil drawing is me drawing out the breadboard circuit as i have made it, which to my eye looks comparable with his circuit.

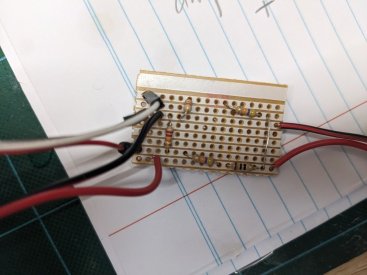

this is the top of the breadboard cicuit

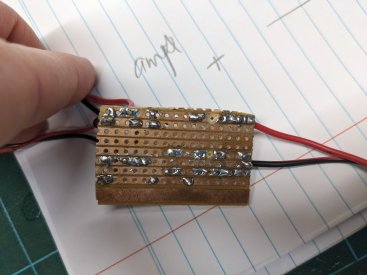

and this is the bottom
it's a second hand breadboard, so ignore the line 4th from bottom, there is nothing soldered in there.
Heading to the right of the picture is the cable to the speaker, with the red positive and the black/red negative.
Heading to the left of the picture is the three dupont soldered connectors to the 3.5mm microphone stereo TRS jack.
Black is ground (sleeve), Red is Left (tip) and white is Right (Ring)
also heading to the left is the cable from the amplifier with Red being + and Black being - of the left channel out.
Can you see an error?
some notes:
clicking only starts when i plug the microphone in (and turn the amp on)
the speakers work
at the top left of the breadboard bottom image it looks like there is a solder bridge from the top rail to the 2nd top rail, there isn't. It's just my terrible soldering where it leans over.
both my desktop and usb soundcard have stereo mic inputs and i've built this rig as a non amplified version using the same computers and got a result (or at least didn't get clicking).
