Confirmation of right measures.

[tokafondo]

Hi. I'm trying to measure impedance of the speakers found in a Technics SB-EH750 set.

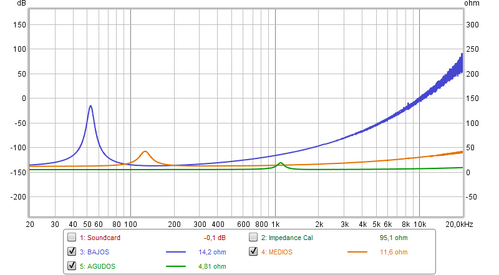

My measures:

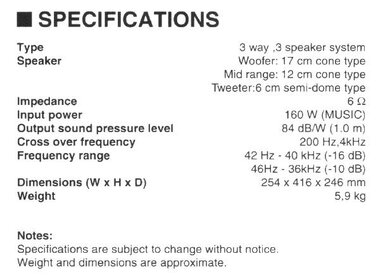

Speaker specs:

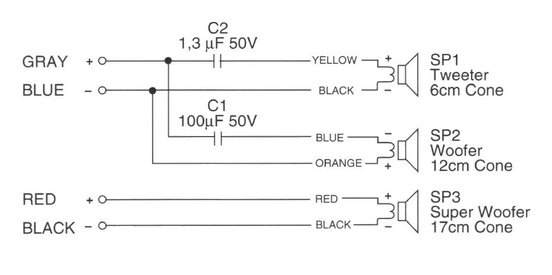

Internal connection:



I'd like to convert the separated cables setup to a single pair setup, and that's why I'm trying to make my own crossover.

So, are my measures right? are consistent? Thanks.



[John Mulcahy]

Measurements look plausible, yes.



[tokafondo]

Measurements look plausible, yes.

Thank you. And thanks for you excellent application.

I can continue with some confidence, then.
