Hello, John. Please, can you add a delay on loopback input? It's very useful for time alignment between loudspeakers range. For example:

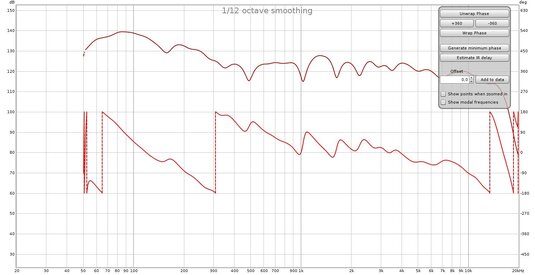

1) I'm starting measurements from HIGH band of my loudspeakers system, and seen phase response something like first picture, because I actually have delay between loopback and mic, depending on distance from loudspeaker to mic.

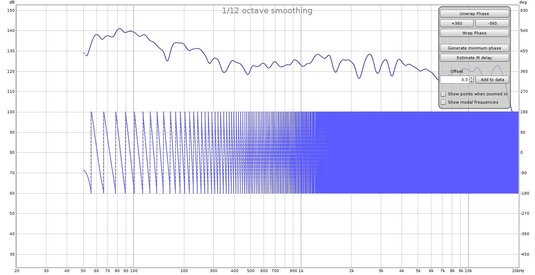

2) Then I click "Estimate IR delay", and seen picture 2. Ok. Excellent. I'm seeing my phase response without loudspeaker->mic delay.
3) If I will have function "insert same delay to loopback for next measures", I will see the clear phase response without air distance delay for all my next measures, and I will not need to manually insert this delay value after make measures my other loudspeakers and bands for time align components of my system.

Thank You!


Attachments

  • Start.jpg
    127.3 KB · Views: 18
  • 2.jpg
    103.6 KB · Views: 19

John Mulcahy

REW Author
Joined
Apr 3, 2017
Posts
8,033
That's something which has been on my todo list for a while, I'll see if I can get to it sooner rather than later.


jtalden

Senior Member
Joined
May 22, 2017
Posts
891
Location
Arizona, USA
More
Preamp, Processor or Receiver
Marantz AV7705 Pre/Pro
Main Amp
VTV 6 chnl NC252MP P-amp x 2
Additional Amp
Behringer DCX2496 x 2
Universal / Blu-ray / CD Player
OPPO BDP-103 Universal Player
Front Speakers
DIY SEAS H1456/H1212 Spkr x 5
Subwoofers
DIY JBL 2235H 15" SW x 2
Screen
Da-Lite Da-Snap 39105V - 92"
Video Display Device
JVC DLA-X790R
:)
John,
Something like 'Set T=0 at Cursor' (
Apply to Selected)
on the impulse overlays chart would a wonderful time saver for some of us.
Thanks for all the wonderful work in creating REW.
