REW for the first time

LCRLive

New Member
Joined
May 11, 2022
Posts
16
More
Preamp, Processor or Receiver
Yamaha MGP16X, DBX Driverack Venue 360
Main Amp
Seismic Magnitude Series
So in other words, applying room calibration the same way we applied soundcard calibration so that it factors in and takes away what the room is doing to measurements. If a soundcard calibration can exist why can't a room calibration file to account for everything?

Basically a room correction calibration file is badly needed within this and other software like the Dayton one because most of us cannot afford or allocate space to build very large anechoic chamber testing rooms.

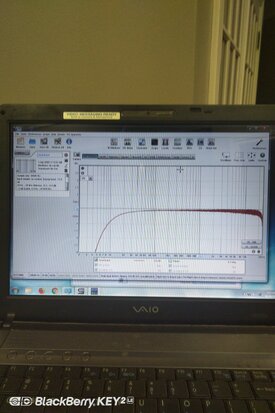

On soundcard calibration, this pic is what my pro 40 is doing. I was expecting this rack unit to be a lot cleaner than this.

Also wondering if there is some latency in the system, wont that completely screw up the measurement with some sort of phasing? or is the signal path for this thing properly compensating for all that?


Attachments

  • 16654635360077617658303639493590.jpg
    231.9 KB · Views: 35
Last edited:
